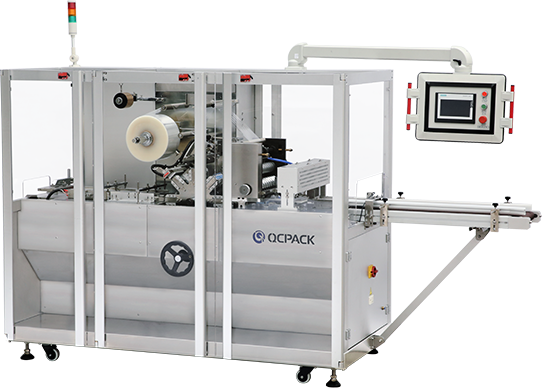

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging (with gold wire) of single box goods in various industries.

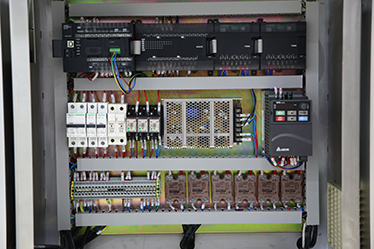

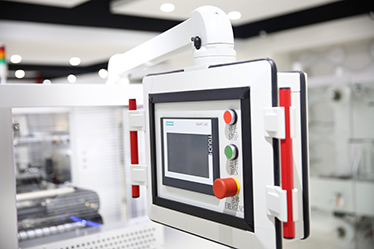

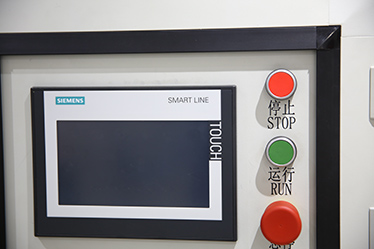

Adopt the most advanced PLC programmable controller imported, with safety door protection and alarm device, ensure the stability of high-speed operation of the machine, all kinds of setting operation can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to dismantle the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging (with gold wire) of single box goods in various industries.

Adopt the most advanced PLC programmable controller imported, with safety door protection and alarm device, ensure the stability of high-speed operation of the machine, all kinds of setting operation can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to dismantle the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging (with gold wire) of single box goods in various industries.

Adopt the most advanced PLC programmable controller imported, with safety door protection and alarm device, ensure the stability of high-speed operation of the machine, all kinds of setting operation can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to dismantle the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging (with gold wire) of single box goods in various industries.

Adopt the most advanced PLC programmable controller imported, with safety door protection and alarm device, ensure the stability of high-speed operation of the machine, all kinds of setting operation can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to dismantle the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging (with gold wire) of single box goods in various industries.

Adopt the most advanced PLC programmable controller imported, with safety door protection and alarm device, ensure the stability of high-speed operation of the machine, all kinds of setting operation can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to dismantle the discharge chain.

Back to list >

Product video

The main technical parameters

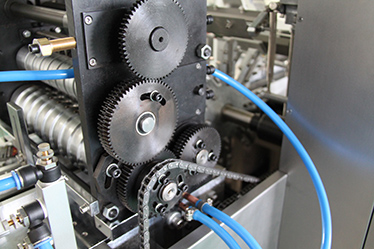

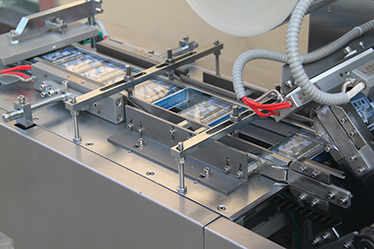

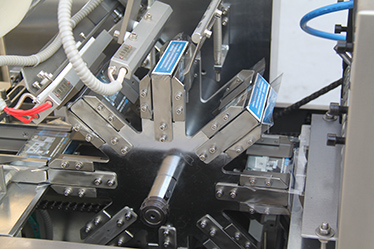

① < span > this machine is a full-automatic high-speed transparent film packaging equipment, which adopts the alternate packaging mode of multi station turntable. All wrapping and heat sealing actions are completed by cam transmission, with the characteristics of fast speed and stable operation.
② < span > by changing the mold, we can pack different sizes of articles. We adopt a number of patent structures with new design, which makes the replacement of molds easier and faster.

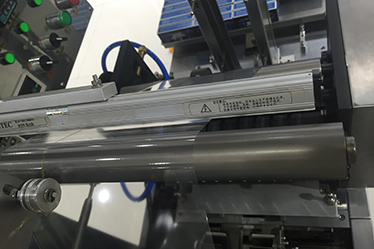

③ < span > with the new double rotary film cutter, the service life is increased by 5 times, and the film cutting is more accurate and smooth.
④ < span > equipped with static eliminator, it can effectively eliminate the static electricity adsorbed on the packaging film and make the film delivery more smooth.
⑤ < span > the frequency converter is used to adjust the packaging speed, which can reach 40-80 bags / min according to the different packaging items.
⑥ < span > it is equipped with double-sided wrinkle plastic and beauty device, which makes the film packaging more close to the body and more beautiful.
⑦ < span > it has the function of composite self-adhesive laser anti-counterfeiting and unsealing line, which really plays the role of anti-counterfeiting and moisture-proof.
⑧ < span > automatic feeding can be used with automatic unmanned production line.

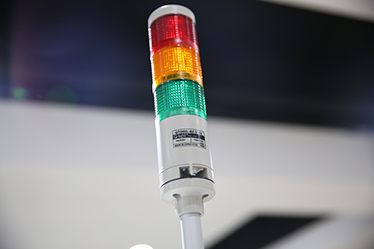

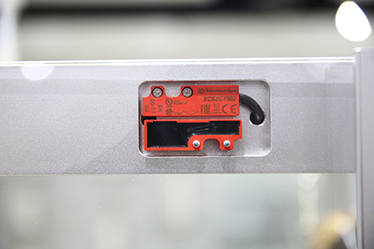

⑨ < span > this machine adopts safety door protection and alarm device.
⑩ < span > the machine is equipped with high and low temperature alarm device.
? < span > no box shutdown.

Technical parameter

packaging BOPP smoke film and gold wire Power supply and total power 220V 50Hz 5kw
Packing speed 40-80 bags / min Machine weight 760kg
Maximum package size (L)240×(W)120×(H)60mm Machine dimensions (L)2001×(W)923×(H)1779mm
packaging BOPP smoke film and gold wire Power supply and total power 220V 50Hz 5kw
